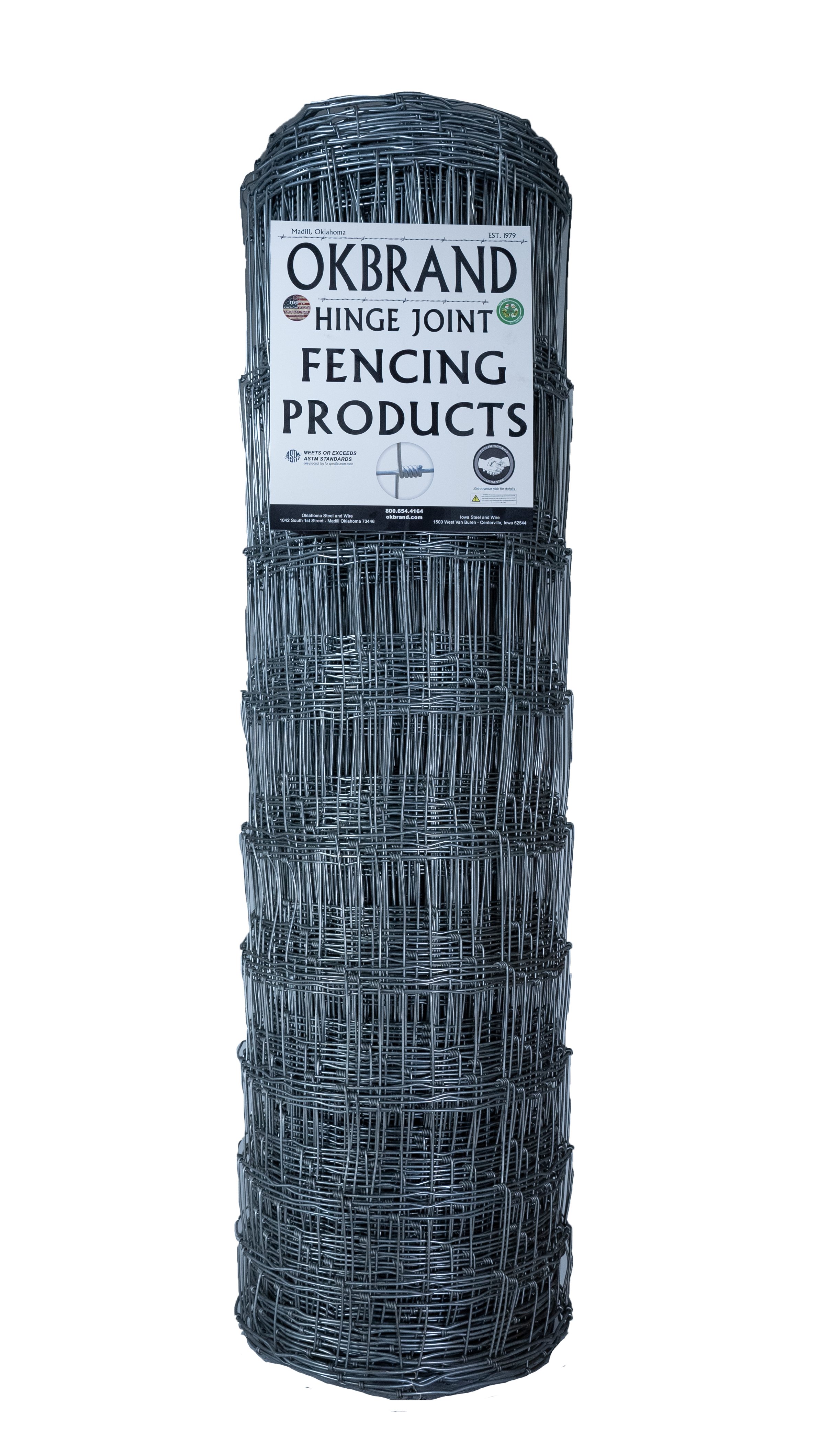

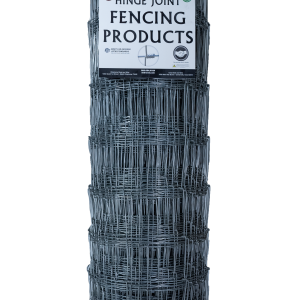

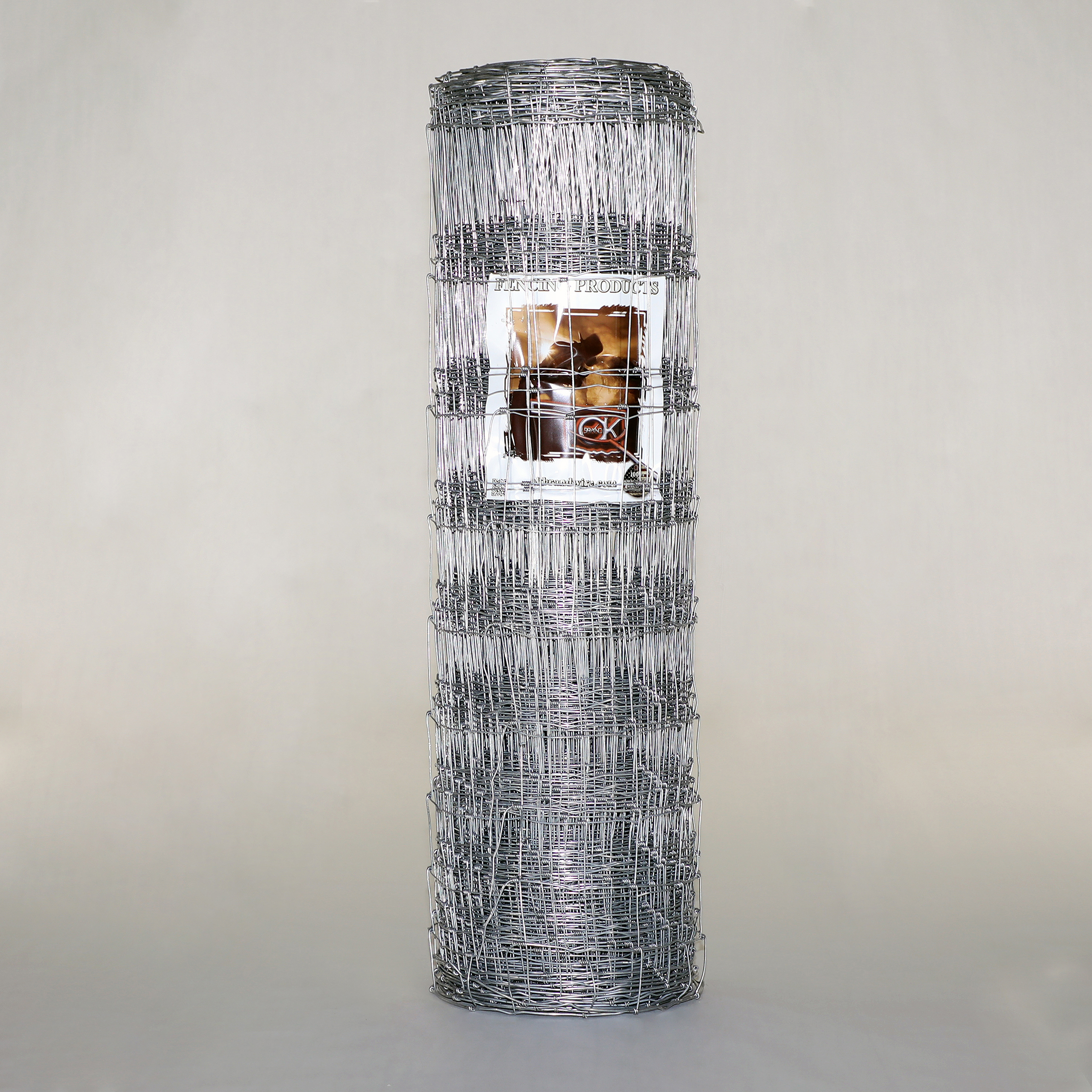

Premium Hinge-Joint Field Fence
OVERVIEW:

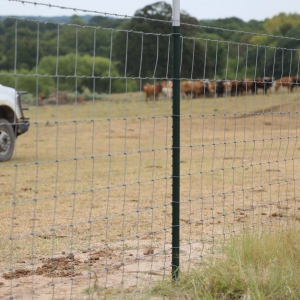

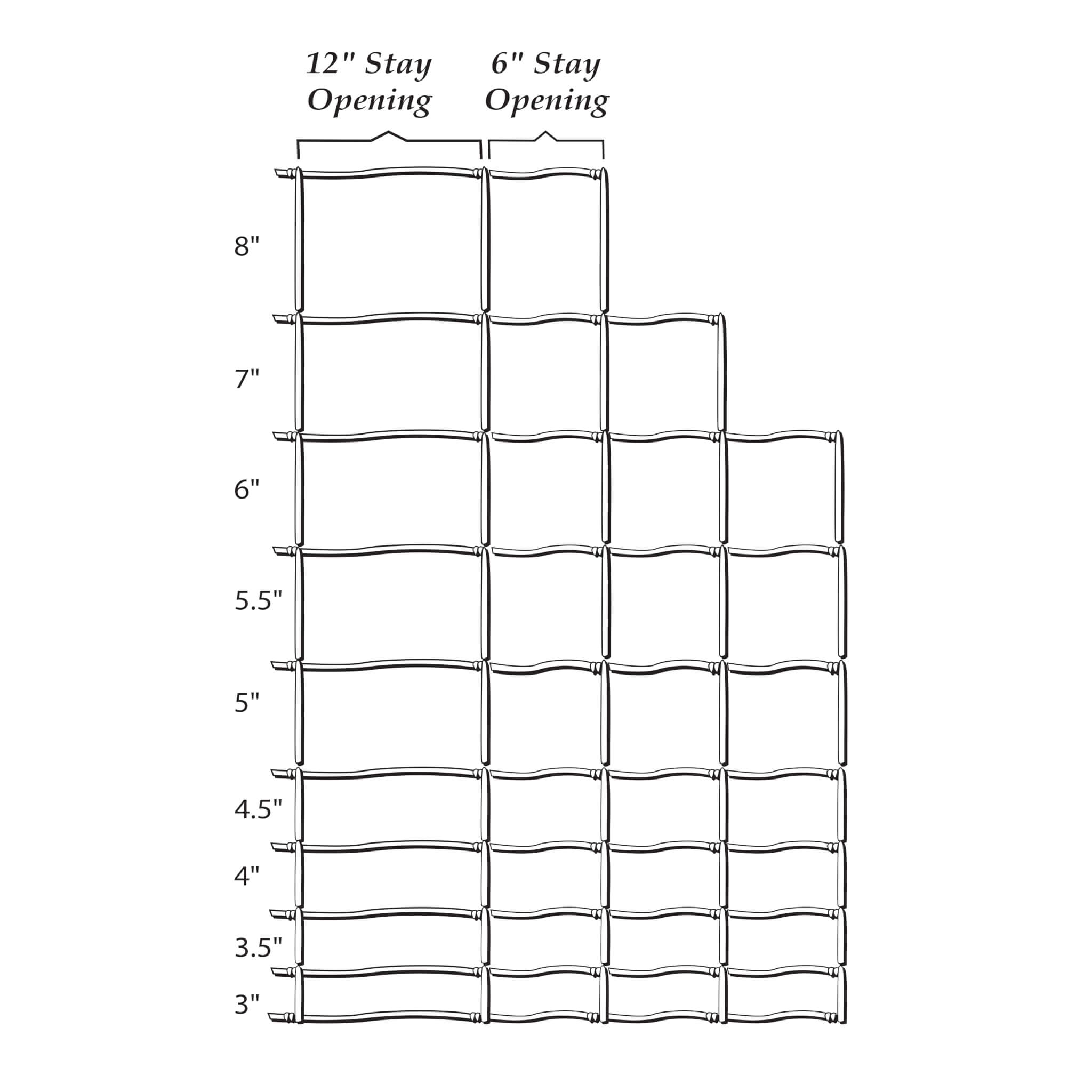

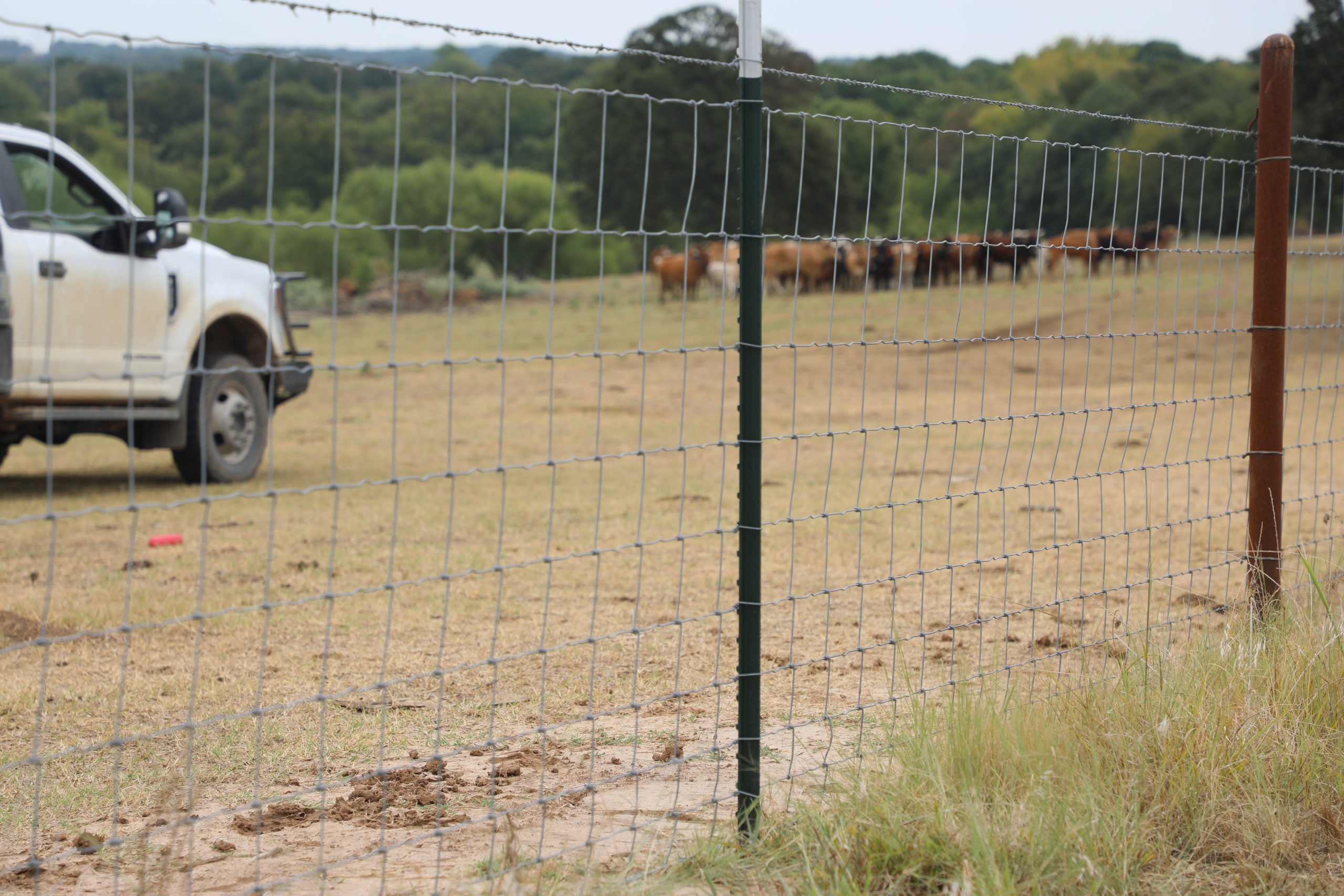

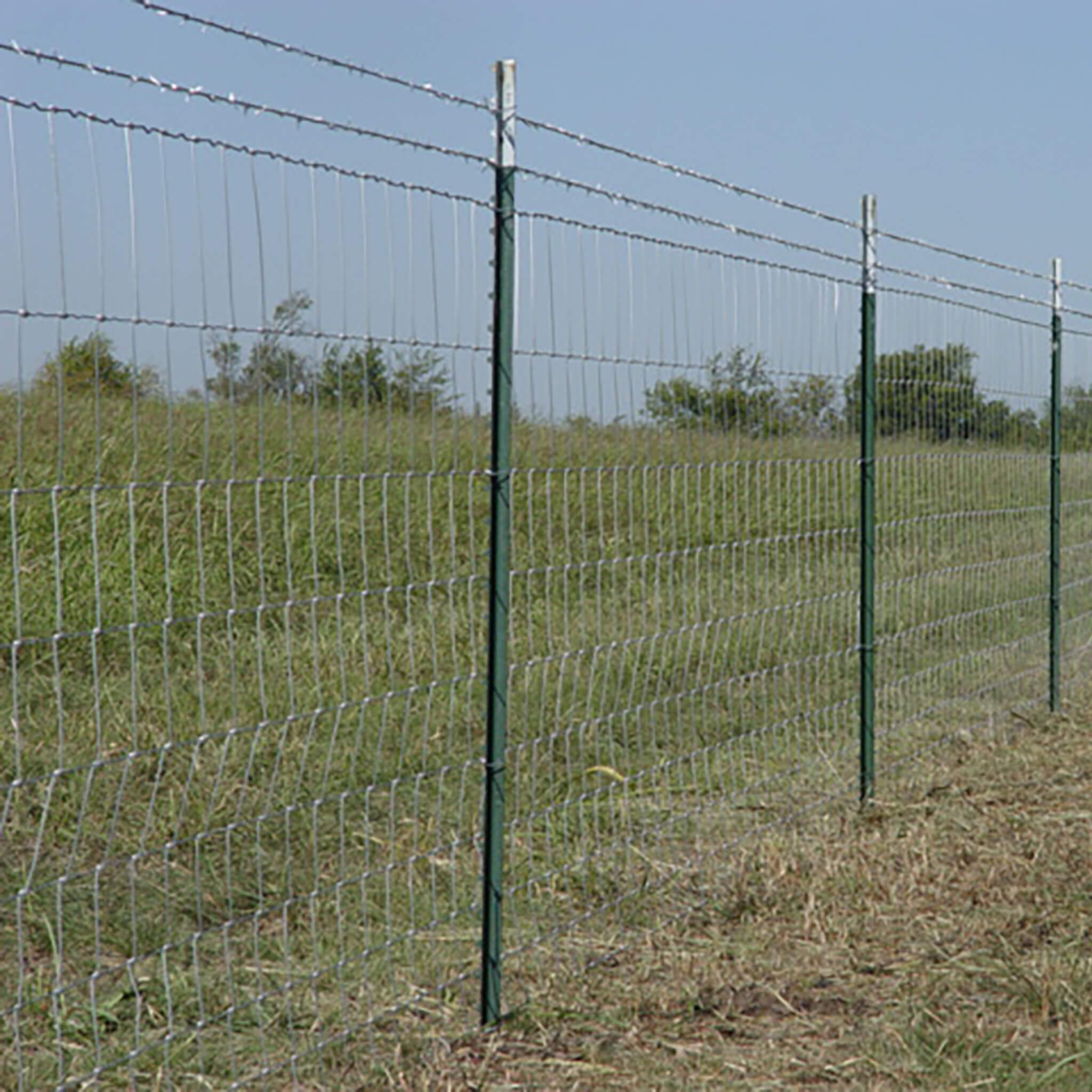

OK Brand Field Fence (woven-wire) is manufactured in a wide variety of heights and styles and feature a graduated spacing that starts with small openings at the bottom, helping to prevent entry by small animals. The Hinge-Joint Knot allows the fencing to give under pressure and spring back into shape. It also expands or contracts under changing weather, giving flexibility and added strength. This quality fencing ensures a solid construction over any terrain. Our field fence is designed using a variety of spacing configurations to accommodate horses, cattle, hogs, and other large animals.
- OKBRAND Premium Field Fence is produced with a Class I or Class III Zinc Coating in 9, 11, and 12.5-gauge. Heights range from 26” to 56”, with a stay opening of either 6” or 12” and a length of 330’ (20 rods). Uniform strength provides the best stretching possible and the range of sizes will meet all your fencing needs.
- OK Brand Select Field Fence offers the same tensile requirements as our Premium Fence. It uses a commercial zinc coating and comes in 330’ rolls. This quality field fence is a great value for your fencing needs.
- OK Brand Commercial Fence is available in the same variety of heights as our other products, with a 6” or 12” stay opening, in 330’ rolls. The Commercial Fence is made with a 14-gauge commercial coated galvanized wire, which makes it a great economical fence for your lighter fencing needs.
SPECIFICATIONS:
| PREMIUM HINGE-JOINT FIELD FENCE – CLASS I ZINC COATING OR CLASS III ZINC COATING | ||||||||||||

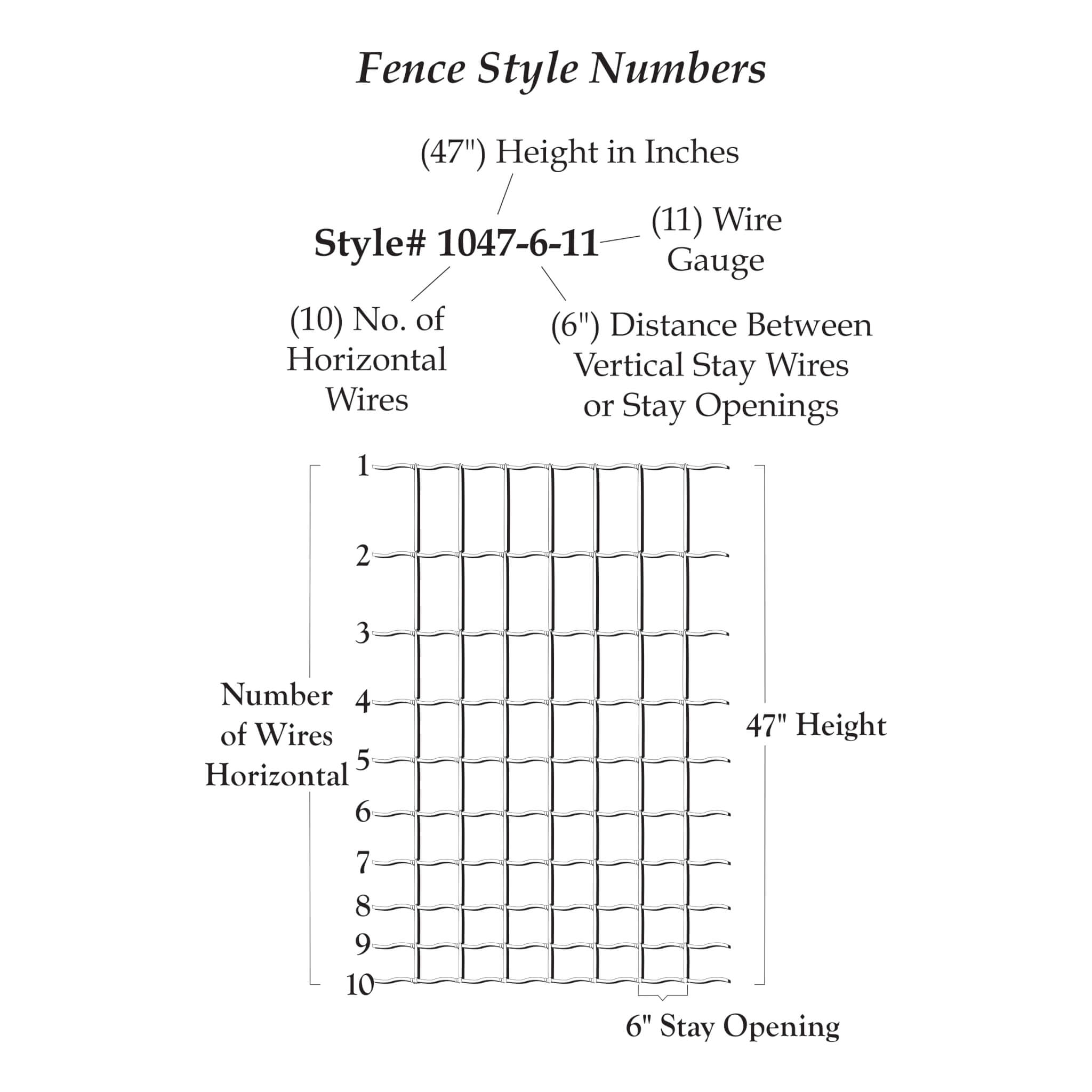

| ITEM # | PRODUCT | NO. HORIZ. WIRES | FENCE HEIGHT | STAY OPENING | INSIDE WIRE GAUGE | TOP & BOTTOM WIRE GAUGE | ROLL LENGTH | APPROX. WEIGHT | ROLLS/ PALLETS | TAG COLOR | STOCK ITEM | ASTM |
| 0206-8 | 939-6 -9 | 9 | 39” | 6” | 9 | 9 | 330’ | 356 lbs. | 4 |  |
||
| 0219-0 | 1047-6-9 | 10 | 47” | 6” | 9 | 9 | 330’ | 408 lbs. | 4 | * | |
|
| 0219-8 | 1154-6-9 | 11 | 54” | 6” | 9 | 9 | 330’ | 456 lbs. | 4 | |
||
| 0208-9 | 939-12-9 | 9 | 39” | 12” | 9 | 9 | 330’ | 264 lbs. | 6 | |
||
| 0220-0 | 1047-12-9 | 10 | 47” | 12” | 9 | 9 | 330’ | 298 lbs. | 6 | * | |
|
| 0221-0 | 1154-12-9 | 11 | 54” | 12” | 9 | 9 | 330’ | 333 lbs. | 6 | |
||
| 0200-5 | 726-6-11 | 7 | 26” | 6” | 11 | 9 | 330’ | 182 lbs. | 6 | |
||
| 0204-5 | 832-6-11 | 8 | 32” | 6” | 11 | 9 | 330’ | 212 lbs. | 6 | |
||
| 0207-5 | 939-6-11 | 9 | 39” | 6” | 11 | 9 | 330’ | 244 lbs. | 6 | * | |
|
| 0211-5 | 1047-6-11 | 10 | 47” | 6” | 11 | 9 | 330’ | 278 lbs. | 6 | * | |
|
| 0225-5 | 1156-6-11 | 11 | 56” | 6” | 11 | 9 | 330’ | 313 lbs. | 6 | * | |
|
| 0209-5 | 939-12-11 | 9 | 39” | 12” | 11 | 9 | 330’ | 184 lbs. | 9 | |
||
| 0213-5 | 1047-12-11 | 10 | 47” | 12” | 11 | 9 | 330’ | 208 lbs. | 9 | * | |
|
| 0226-5 | 1156-12-11 | 11 | 56” | 12” | 11 | 9 | 330’ | 232 lbs. | 9 | |
||
| 0201-5 | 726-6-12.5 | 7 | 26” | 6” | 12.5 | 10 | 330’ | 130 lbs. | 9 | * | |
|
| 0205-5 | 832-6-12.5 | 8 | 32” | 6” | 12.5 | 10 | 330’ | 150 lbs. | 9 | * | |
|
| 0208-5 | 939-6-12.5 | 9 | 39” | 6” | 12.5 | 10 | 330’ | 170 lbs. | 9 | * | |
|
| 0212-5 | 1047-6-12.5 | 10 | 47” | 6” | 12.5 | 10 | 330’ | 190 lbs. | 9 | * | |
|
| 0225-0 | 1156-6-12.5 | 11 | 56” | 6” | 12.5 | 10 | 330’ | 220 lbs. | 9 | * | |
|
| 0203-5 | 726-12-12.5 | 7 | 26” | 12” | 12.5 | 10 | 330’ | 104 lbs. | 9 | |
||
| 0206-5 | 832-12-12.5 | 8 | 32” | 12” | 12.5 | 10 | 330’ | 116 lbs. | 9 | * | |
|
| 0210-5 | 939-12-12.5 | 9 | 39” | 12” | 12.5 | 10 | 330’ | 132 lbs. | 9 | * | |
|
| 0214-5 | 1047-12-12.5 | 10 | 47” | 12” | 12.5 | 10 | 330’ | 146 lbs. | 9 | * | |
|
| 0226-6 | 1156-12-12.5 | 11 | 56” | 12” | 12.5 | 10 | 330’ | 160 lbs. | 9 | |
||
| SELECT HINGE-JOINT FIELD FENCE – COMMERCIAL ZINC COATING | |||||||||||
| ITEM # | PRODUCT | NO. HORIZ. WIRES | FENCE HEIGHT | STAY OPENING | INSIDE WIRE GAUGE | TOP & BOTTOM WIRE GAUGE | ROLL LENGTH | APPROX. WEIGHT | ROLLS/ PALLETS | TAG COLOR | STOCK ITEM |
| 0201-0 | 726-6-12.5 | 7 | 26” | 6” | 12.5 | 10 | 330’ | 123 lbs. | 9 | * | |
| 0205-0 | 832-6-12.5 | 8 | 32” | 6” | 12.5 | 10 | 330’ | 142 lbs. | 9 | * | |
| 0208-0 | 939-6-12.5 | 9 | 39” | 6” | 12.5 | 10 | 330’ | 161 lbs. | 9 | * | |
| 0212-0 | 1047-6-12.5 | 10 | 47” | 6” | 12.5 | 10 | 330’ | 183 lbs. | 9 | * | |
| 0224-0 | 1156-6-12.5 | 11 | 56” | 6” | 12.5 | 10 | 330’ | 205 lbs. | 9 | * | |
| HINGE-JOINT FIELD FENCE – COMMERCIAL ZINC COATING | |||||||||||
| ITEM # | PRODUCT | NO. HORIZ. WIRES | FENCE HEIGHT | STAY OPENING | INSIDE WIRE GAUGE | TOP & BOTTOM WIRE GAUGE | ROLL LENGTH | APPROX. WEIGHT | ROLLS/ PALLETS | TAG COLOR | STOCK ITEM |
| 0203-7 | 726-6-14 | 7 | 26” | 6” | 14 | 11 | 330’ | 86 lbs. | 9 | * | |
| 0205-7 | 832-6-14 | 8 | 32” | 6” | 14 | 11 | 330’ | 98 lbs. | 9 | * | |
| 0208-7 | 939-6-14 | 9 | 39” | 6” | 14 | 11 | 330’ | 112 lbs. | 9 | * | |
| 0212-7 | 1047-6-14 | 10 | 47” | 6” | 14 | 11 | 330’ | 125 lbs. | 9 | * | |
| 0225-7 | 1156-6-14 | 11 | 56” | 6” | 14 | 11 | 330’ | 141 lbs. | 9 | ||
| 0206-7 | 832-12-14 | 8 | 32” | 12” | 14 | 11 | 330’ | 78 lbs. | 9 | ||
| 0210-7 | 939-12-14 | 9 | 39” | 12” | 14 | 11 | 330’ | 87 lbs. | 9 | ||
| 0214-7 | 1047-12-14 | 10 | 47” | 12” | 14 | 11 | 330’ | 97 lbs. | 9 | ||
| 0226-7 | 1156-12-14 | 11 | 56” | 12” | 14 | 11 | 330’ | 107 lbs. | 9 | ||
RECOMMENDED FOR:
